Performance Chractaristics



1、  This machine adopts computer programming control, high degree of automation.

2、  Double touch terry mechanism unique or servo—mechanism, at the same time, can weave the level terry loop, weave type terry loop, and reed reliable self-locking, prevent “dilute microgroove”.

3、  Terry beam by using electronic warp tension detecting mechanism, the warp tension always keep uniform.

4、  Weaving satin by cramming motion, electromagnetic clutch, brake alternate control, or by a servo take-up, servo warp, short reaction time and accuracy.



Technical parameters:



Reed width :       200cm—280cm

Range of counts :   Wool and worsted yam : 680 tex (1.5Nm ) — 10tex (100Nm)

Weft selection :    6 mechanical color selector / 8 electronic color selection ( optional )

Weft insertion :     6 connecting rod weft insertion

Beet up :                By short crank am 4 connecting rod

Speed :                 220RPM

Terry motion :        Electronic control terry motion, Servo terry motion (optional ), Terry high 1—12mm

Shedding :             Electronic jacquard

Let-off  :                  Let-off, electronic let-off (optional ), Top warp: electronic let-off

Beam flange :       φ600mm φ680mm φ800mm ( optional )

Take-up :                Mechanical take-up , electronic take-up (optional)

Dia of rolling up :    φ560mm

Main motor :            2.2Kw/2.5Kw

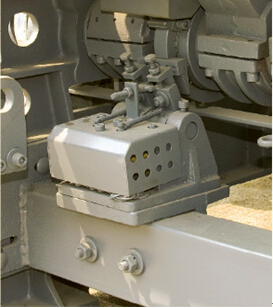

Terry loop device, adopts electromagnet signal driving cam mechanism and achieve the terry objective, the device is stable and good reliability.	Top beam by using double tension structure, with sensor double protection and frequency control motor complete terry warp feeding.

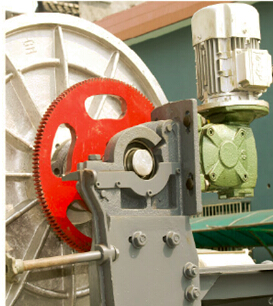

Active electronic let off, electronic control stop feeding device, tension in weaving wide edge satin towel process more stable.	High speed electronic eight color selection is controlled by the cam color selection lever, suitable for a variety of weft yarn.
Electric control use USB interface to computer programming control circuit, control dobby, terry raising, color selection, let off, take up(cramming) and other functions.	Active electronic let off control system, LCD display function, simple operation.
