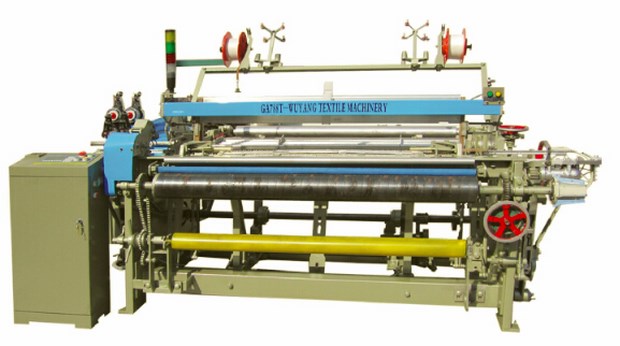

GA788T Tappet rapier loom has been developed mainly with the idea that most of the factories, which are still using shuttle looms and actually want to change the shuttle looms to shuttleless rapier looms, but they have to make new building or put less quantity rapier loom because normal type of rapier loom size is larger than their old shuttle looms. In order to solve this problem, we designed a new model rapier loom Model GA788T, which occupy less space and keep same speed, this machine is suitable for making various plain fabric.

 Technical parameters :



Reed Width :         140cm～230cm

Weft selection :      2 mechanical color selector/ electronic color selector (optional)

Weft insertion  :      4 connecting rod weft insertion

Weft density range :  14～47 picks/CM

Speed :                  200 RPM

Heald frame :          2 pieces (total 6 heald bars, with 8 heald frames function)

Let-off :                  Mechanical let-off

Beam flange :         φ550mm  φ600mm(optional)

Take-up :                Mechanical take-up



Dia of rollig up :        φ300mm

Selvedge  :              leno, tuck in, hot melt cutting (optional)









Electronic V type color selector and tuck in device (Optional)	Four connecting rod weft insertion  mechanism

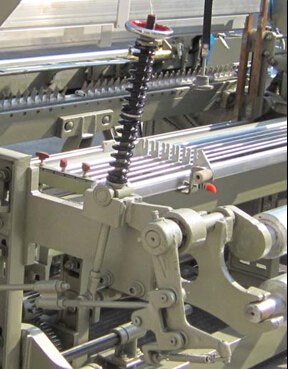

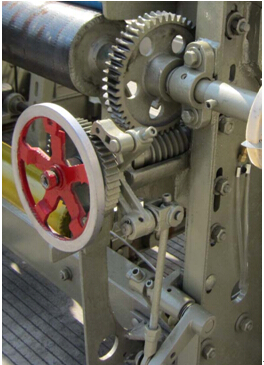

Tension control device	Worm wheel take up mechanism
Strong bottom suppor	Retractable back rest
