Performance characteristics:

       Model GA758 rapier loom, the design of the essence of agglomeration domestic and international market

  advanced machines, high speed, high quality, high grade, design speed is 300 rpm.The weft insertion rate

up to 600 meters per minute, loom running steady, high precision, can move over weft, no mark on fabric,

 improve the quality of cloth, suitable for light, medium and heavy various grade of fabric, production and

 quality can be improved one times, it is an ideal machine in market.



Technical parameters:

Reed Width :            180cm～360cm

Weft selection :         6 mechanical color selector/ 8 electronic color selector(optional)

Weft insertion :          6 connecting rod weft insertion

Weft density range :    8～50 picks/CM

Machine speed :        180～270 RPM (360CM - 200CM width)

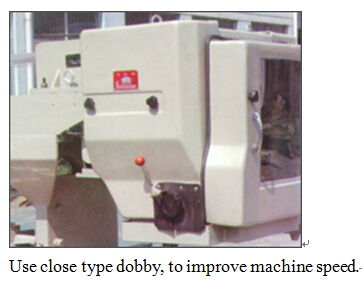

Shedding :                  Electronic dobby；Mechanical dobby(optional)    Electronic jacquard

Let-off :                     Mechanical let-off; electronic let-off (optional)

Beam flange :            φ600mm,  φ680mm, φ800mm ( optional )

Take-up :                  Mechanical  take-up ; electronic take-up (optional)

Dia of rolling up :      φ420mm

Main motor  :            2.2Kw
