Performance characteristics:

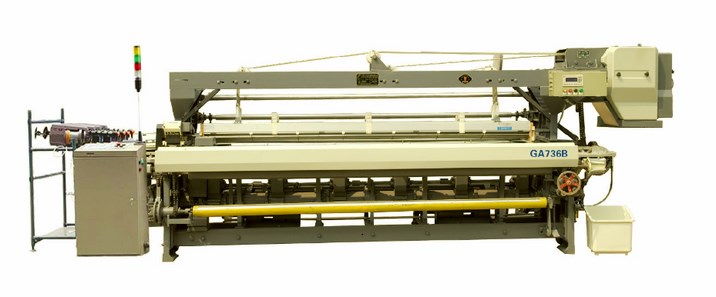

          Model GA736B rapier loom, the design of the essence of agglomeration domestic and international market advanced machines,

high speed, high quality,high grade, design speed is 280 rpm.

        Machine running steady, high precision, can move over weft, no mark on fabric, improve the quality of cloth, suitable for light,

medium and heavy various grade of fabric, production and quality can be improved one times, it is an ideal machine in market.



Technical parameters:

  Reed width :               180cm—360cm



  Weft selection :          6 mechanical color selector / 8 electronic color selector (optional)



  Weft insertion :           6 mechanical color selector / 8 electronic color selector ( optional )



  Weft density range :    8—50 picks/CM



  Machine speed :       180—270RPM ( 360cm—200CM )



  Shedding :                 electronic dobby ;  mechanical dobby ( optional )  Electronic jacquard



  Let- off :                      mechanical let-off ;  electronic let-off (optional )



  Beam flange :            φ600mm φ680mm φ800mm ( optional)



  Take-up :                    mechanical take-up ; electronic take-up (optional )



  Dia of rolling up :       φ420mm

  Main motor :              2.2 KW



Strengthen type rapier transmission	Friction clutch rolling device, make cloth tension can be adjusted.
The six connecting rod weft insertion mechanism, with a short slay base, improve weft insertion speed, reduce warp   breakage rat.	Use close type dobby, to improve machine speed.
Mechanical continuous take-up.	selection is controlled by the cam color selection lever suitable for a variety of weft yarn.
