 Performance characteristics:

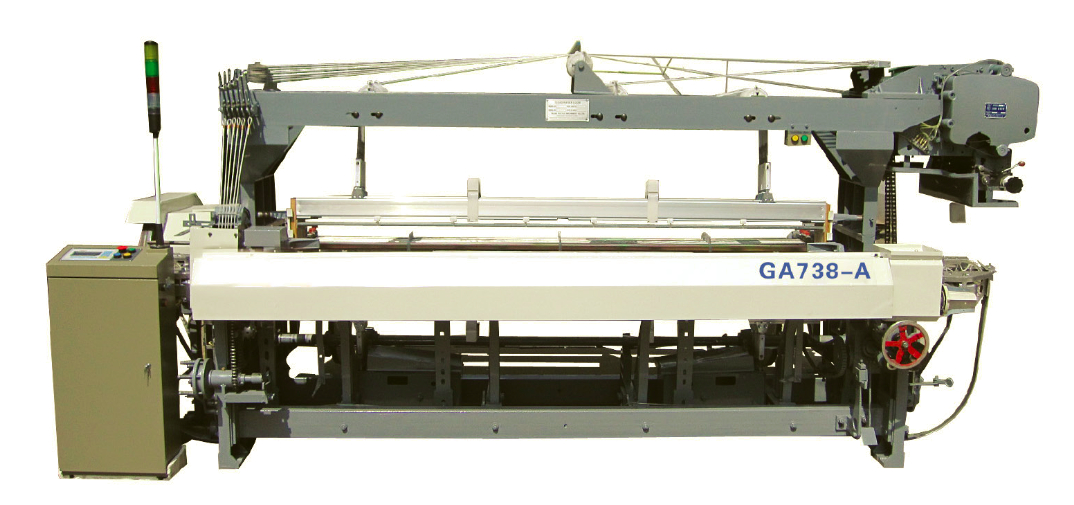

    Model GA738-A rapier loom is improved by GA788 basis, 6 color weft selector, single weft color change, can be equipped with dobby, jacquard, and automatic pick finding device. Thus the production can be increased, product quality can be improved, and a wide range of applications, improve the working environment, reducing the labor intensity, widely applicable by small and medium-sized textile factory.This machine is suitable for weaving of natural fibers, chemical fiber, blended yarn and other fabrics.

Technical parameters

Reed Width :             180cm360cm
Weft selection :          6 mechanical color selector/ 8 electronic color selector(optional)
Weft insertion :           4 connecting rod weft insertion
Counts No :               Net:852
Weft density range :    850 picks/CM
speed :                      130230 RPM
Shedding :                 Mechanical dobby; Electronic dobby    Electronic jacquard
Let-off :                     Mechanical let-off
Beam flange :            φ600mm φ680mm φ800mm  (optional)
Take-up :                  Mechanical take-up
Dia of rolling up  :     φ400mm
Main motor  :            1.5Kw

Strengthen type rapier transmission box

Warp beam flange diameter: φ600mm,φ700mm,φ800mm (optional)

Three rolls system can make cloth more tightly

Mechanica continous take-up

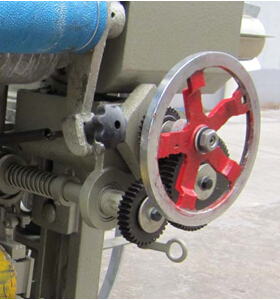

Friction clutch rolling device, make cloth roll tight, tension can be adjusted.

Electronic circuit control, easy to start, inching, one weft, stop and other functions, can display warp, weft fault.
