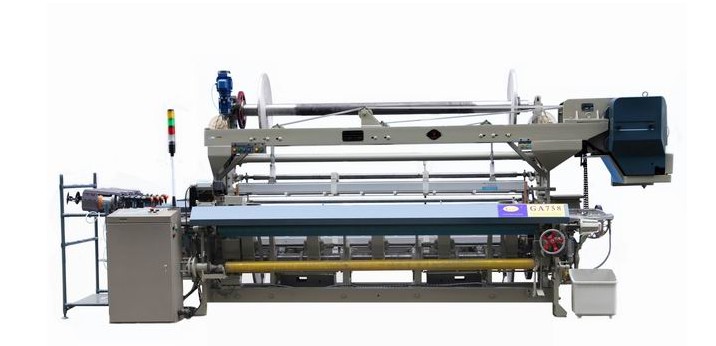

Performance characteristics:

1.This machine adopts computer programming control, high degree of automation.
2.Double touch terry mechanism unique or servo – mechanism, at the same time, can weave the level terry loop, weave type terry loop, and reed reliable self-locking, prevent "dilute       microgroove".
3.Terry beam by using electronic warp tension detecting mechanism, the warp tension always keep uniform.
4.Weaving satin by cramming motion, electromagnetic clutch, brake alternate control, or by a servo take-up, servo warp, short reaction time and accuracy.

Technical parameters:

Reed width :        200cm～280cm

Range of counts:  Cotton and synthetic yarns：500tex(1.2Ne) ～5 tex(120Ne)
                                    Wool and worsted yarn ：680 tex(1.5Nm) ～10 tex(100Nm)
                                    Parallel filaments：10dtex(9den) ～1650dtex(1485den)
Weft selection :    6 mechanical color selector/ 8 electronic color selector(optional)
 Weft insertion :    6 connecting rod weft insertion
beat up :              By short crank arm 4 connecting rod
Terry motion :      Electronic control, Servo terry motion (optional).  Terry by activity reed, terry high 1-12mm
Shedding:            Electronic dobby: max 18 pcs heald frame  Electronic jacquard
Let-off  :             Bottom beam: mechanical et-off, electronic let-off (optional)
Beam flange:      φ600mm, φ680mm,  φ800mm (optional)
Take-up:            Mechanical take-up; electronic take-up (optional)
Dia of rolling up:   φ560mm
Main drive:   2.2Kw - 2.5Kw



Electronic color selector

Electronic bottom beam let off

Electronic top beam let off

Terry loop device, adopts electromagnet signal driving cam mechanism and achieve the terry objective, the device is stable and good reliability.

active electronic let off, electronic control

 stop feeding device, tension in weaving

wide edge satin towel process more stable.

Using static servo terry device, with weaving level height and wave height function

High speed electronic eight color selection is controlled by the cam color selection lever, suitable for a variety of weft yarn.

Electric control use USB interface to computer programming control circuit, control dobby, terry raising, color selection, let off, take up (cramming) and other functions. Electric control box with a color LCD screen, display content more clearly,



Servo take-up device, can be set to any weft density, strong randomness, widely used.
